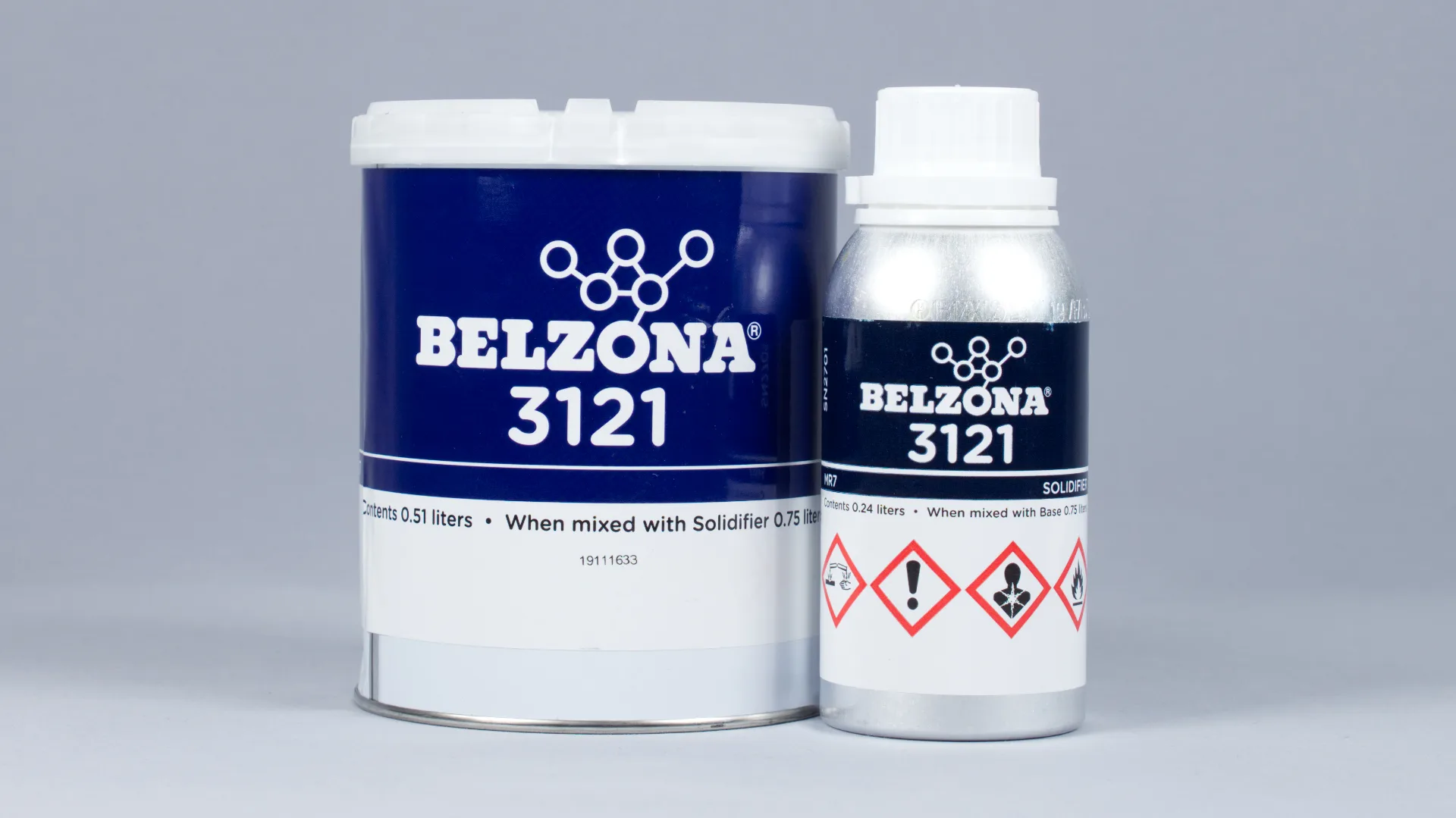

Belzona 3121 (Flexible Reinforced Composite)

Belzona 3121 is a high-performance, solvent-free, two-part flexible reinforced composite material designed for the repair, restoration, and reinforcement of a wide range of industrial equipment and structures. It is ideal for applications where flexibility, strength, and impact resistance are critical.

Key Features

1. Reinforced Composite:
   • Contains high-strength, fiber-reinforced materials for enhanced mechanical properties, ensuring that the repair is durable and long-lasting.
2. Flexible:
   • Designed to offer flexibility in dynamic applications, making it ideal for structures and equipment exposed to vibration, thermal expansion, and mechanical movement.
3. Excellent Adhesion:
   • Provides superior bonding to a wide range of substrates, including metals, plastics, composites, and concrete.
4. Solvent-Free:
   • Solvent-free formulation ensures a safer and cleaner working environment, particularly in confined spaces.
5. Weather and UV Resistant:
   • Provides excellent resistance to UV radiation, weather conditions, and environmental elements, making it suitable for both indoor and outdoor applications.
6. Easy to Apply:
   • Simple to mix and apply, providing ease of use for maintenance teams and operators.

Applications

• Pipe and Tank Repairs:
  • Ideal for repairing cracks, leaks, and surface damage on pipes, tanks, and vessels that are exposed to dynamic stresses, vibration, or thermal movement.
• Marine Applications:
  • Suitable for use in marine environments, such as repairs to boats, ships, and offshore platforms, where flexibility and resistance to environmental conditions are critical.
• Concrete Repairs:
  • Used for repairing concrete surfaces, particularly where flexibility is needed to accommodate movement and prevent further cracking.
• Structural Reinforcement:
  • Excellent for reinforcing structural elements that require additional strength and flexibility, such as beams, columns, and other load-bearing components.
• Automotive and Aerospace Repairs:
  • Effective for repairs to automotive and aerospace components exposed to mechanical stress, vibration, and thermal cycling.
• General Industrial Repairs:
  • Ideal for the repair of machinery, equipment, and tools that experience dynamic loading, wear, and tear.

How to Use

1. Surface Preparation:
   • Thoroughly clean and prepare the surface to remove contaminants like oil, grease, rust, and dirt. Abrade the surface to ensure proper adhesion.
2. Mixing:
   • Mix the two components (Part A and Part B) in the recommended ratio until a uniform color is achieved. Follow the manufacturer’s guidelines for the mixing process to ensure proper activation of the material.
3. Application:
   • Apply the mixed composite material directly to the damaged area using a trowel, putty knife, or other appropriate tool. Ensure that the material is evenly spread and that it fills any cracks or gaps.
4. Curing:
   • Allow the repair to cure for the recommended time (typically 24 hours at 20°C/68°F) before subjecting it to stress or use. Curing times may vary depending on temperature and environmental conditions.

Technical Specifications

• Base: Epoxy resin with reinforced composite fibers
• Color: Grey (standard), with other colors available upon request
• Compressive Strength: 50 MPa (7,250 psi)
• Flexural Strength: 40 MPa (5,800 psi)
• Tensile Strength: 25 MPa (3,625 psi)
• Shore Hardness: 80 D
• Temperature Resistance:
  • Continuous: 80°C (176°F)
  • Intermittent: 100°C (212°F)
• Curing Time:
  • Tack-free time: 6 hours
  • Full cure: 24 hours at 20°C (68°F)

Benefits

• Reinforcement and Repair:
  • Ideal for reinforcing damaged or weakened areas, offering a strong, flexible solution for critical components.
• Durability:
  • Provides long-lasting protection and repair in both harsh and dynamic environments.
• Flexibility:
  • Perfect for repairs on surfaces subject to vibration, thermal expansion, and mechanical movement, ensuring the integrity of the repair over time.
• Easy Application:
  • The simple two-part system allows for quick and efficient application, reducing downtime and improving productivity.
• Cost-Effective:
  • A more affordable alternative to complete replacement of damaged components, saving both time and money.

Safety Precautions

• Always wear appropriate personal protective equipment (PPE), such as gloves, goggles, and respiratory protection, when handling and applying Belzona 3121.
• Work in well-ventilated areas to avoid inhalation of fumes during the mixing and curing process.
• Refer to the Safety Data Sheet (SDS) for more detailed safety and handling instructions.

Storage

• Store Belzona 3121 in a cool, dry place, away from direct sunlight, at temperatures between 5°C and 30°C (41°F and 86°F).
• Ensure that the containers are tightly sealed to avoid contamination and preserve the product’s shelf life.

Belzona 3121 offers a reliable, flexible, and durable solution for a wide range of industrial repair and reinforcement needs. Its ease of application, long-lasting results, and ability to withstand dynamic conditions make it a trusted choice for maintenance professionals across various industries.
