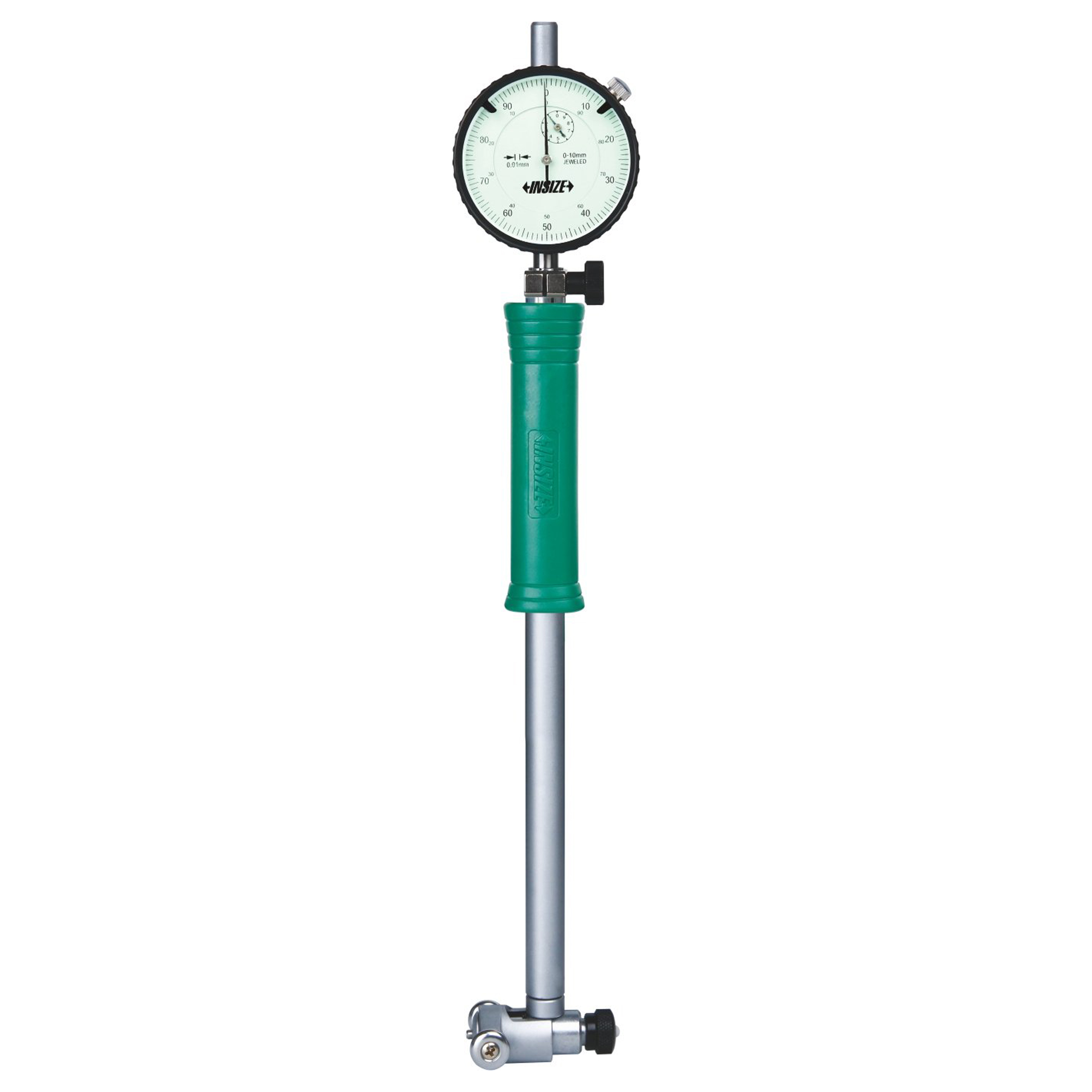

INSIZE Dial Bore Gage 50-160mm (2322-160A)

The INSIZE 2322-160A Dial Bore Gage is a high-precision tool designed for measuring large internal diameters, including bores and cylinders, with remarkable accuracy. Built for demanding industrial and manufacturing environments, this bore gage provides reliable measurements for a wide range of applications, including automotive, aerospace, and heavy machinery.

Key Features:

1. Extended Measurement Range:
   • Designed for internal diameter measurements from 50mm to 160mm, making it ideal for large bore applications.
   • Perfect for use in industries where large cylindrical parts and bores are prevalent, such as automotive, aerospace, and machinery manufacturing.
2. High Precision and Accuracy:
   • Resolution: 0.01mm, ensuring precise and repeatable measurements for critical internal diameter checks.
   • The tool provides consistent and accurate readings, making it ideal for high-tolerance applications.
3. Large, Easy-to-Read Dial Indicator:
   • Equipped with a clear and sensitive dial indicator with 0.01mm graduations, allowing for accurate readings and minimal errors.
   • The dial’s large size makes it easier for users to read measurements, improving productivity in busy environments.
4. Durable Carbide-Tipped Measuring Points:
   • The carbide-tipped measuring points offer superior wear resistance, ensuring the longevity of the gage even under harsh working conditions.
   • These contacts are ideal for use on hard materials and maintain the gage’s precision over time.
5. Interchangeable Measuring Heads:
   • Features interchangeable anvils that can be adapted to different bore sizes within the range of 50mm to 160mm.
   • This flexibility allows the gage to be used for a variety of measurement tasks with ease.
6. Ergonomic and Robust Construction:
   • The gage is designed with a lightweight yet sturdy construction, making it comfortable for extended use while ensuring durability.
   • The ergonomic design reduces user fatigue and improves handling, making it ideal for high-volume measurements.
7. Setting Ring Compatibility:
   • Compatible with setting rings for calibration, ensuring accurate and reliable measurement results.
   • Calibration with setting rings ensures that the gage remains within tolerance, providing confidence in every measurement.

Specifications:

• Model: INSIZE 2322-160A
• Measurement Range: 50mm – 160mm
• Resolution: 0.01mm
• Dial Indicator: Large and easy-to-read, with 0.01mm graduations
• Contact Points: Carbide-tipped for long-lasting durability
• Material: High-quality steel construction for robustness and precision
• Interchangeable Anvils: Allows for flexibility in measurements across different bore sizes
• Calibration: Compatible with setting rings for precise calibration

Applications:

The INSIZE 2322-160A Dial Bore Gage is ideal for various applications, including:

• Large-Scale Manufacturing: Measuring large bores in machinery, engines, turbines, and other industrial equipment.
• Quality Control: Ensuring that parts meet strict internal diameter tolerances and quality standards.
• Automotive and Aerospace: Measuring cylinder bores, bearings, and other large cylindrical components critical to engine performance and precision parts.
• Heavy Machinery and Toolmaking: Checking the accuracy of machined holes, bearings, and other large internal components.

Why Choose INSIZE?

INSIZE is renowned for manufacturing precision measurement tools that are both durable and accurate. The 2322-160A Dial Bore Gage continues this legacy by offering a tool that is built to withstand heavy use while delivering consistent, high-precision results in large bore measurements.

The INSIZE Dial Bore Gage 50-160mm (2322-160A) is the ideal tool for professionals who need to measure large internal diameters with high precision. Whether you are working in automotive, aerospace, or heavy machinery manufacturing, this gage will provide the accuracy and reliability you need for critical internal diameter measurements.
